MHT Wall-Mounted Toilet Shower Mixer (Open Type)

1. Primary Purpose & Design Context

· Function: This is a dedicated water control valve for a bidet sprayer (hand shower/health faucet) installed near the commode (WC).

· Design Driver: As you noted, modern architectural plans now routinely include both hot and cold water supply lines near the toilet area. This mixer allows the user to get tempered water from the health faucet, which is more hygienic and comfortable than cold water, especially in winters or for therapeutic purposes.

· Alternative to: It replaces the old-fashioned single cold-water tap for the health faucet.

2. Key Technical Specifications (as per your details)

· Type: Exposed/Open Wall-Mounted Mixer. All plumbing is surface-mounted.

· Inlet Centers: Available in 4-inch (100mm) and 6-inch (150mm) center-to-center (c/c) configurations. This matches the standard spacing between hot and cold water supply points (wall elbows) in the bathroom.

  · 4-inch: Most common and standard spacing.

  · 6-inch: Used where pipes are spaced wider; requires checking the wall plumbing before purchase.

· Material & Construction:

  · Body: Brass (the industry standard for durability and corrosion resistance). Lower-quality brands may use inferior metals.

  · Finish:

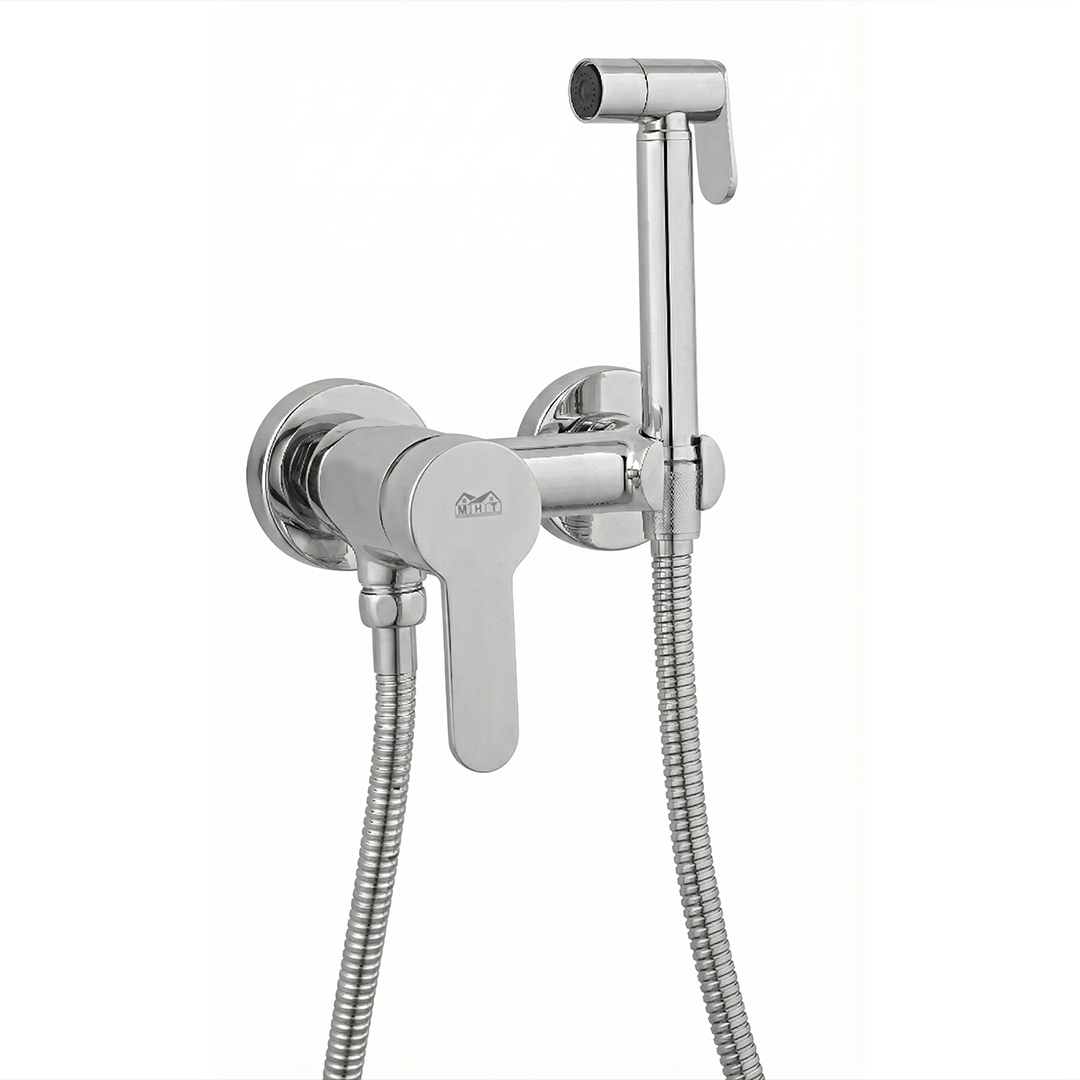

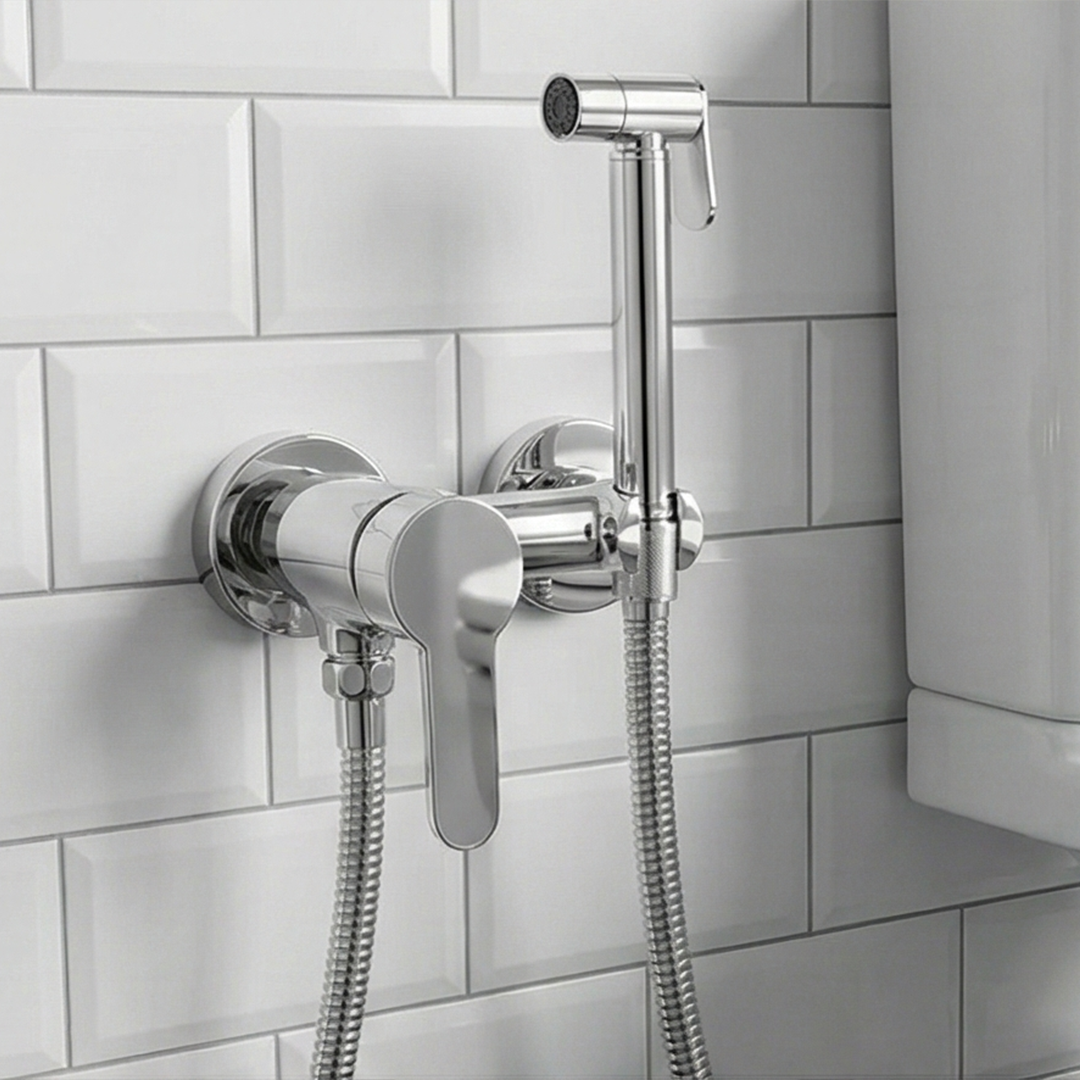

    · Chrome Plated: Most common, easy to clean, shiny, and classic.

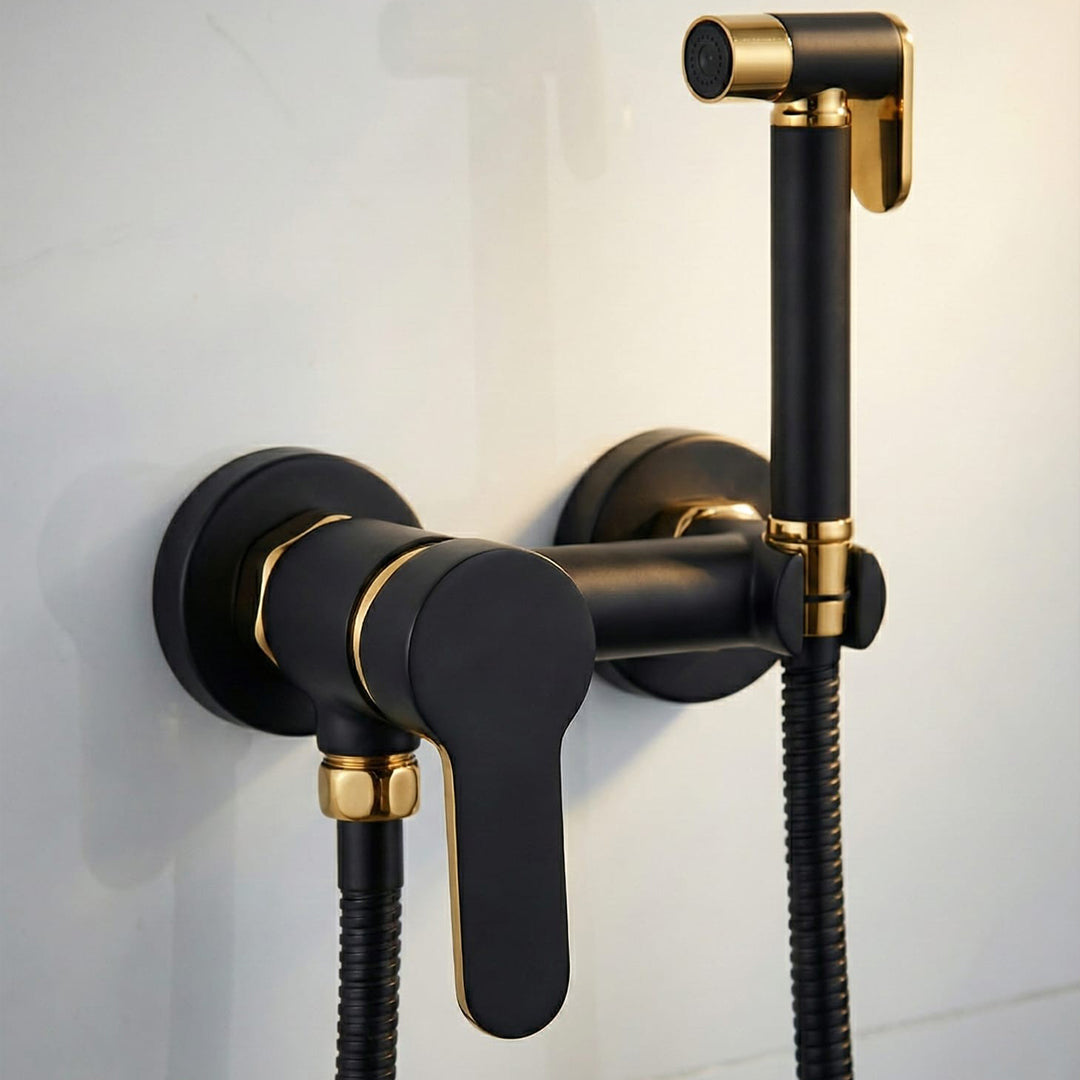

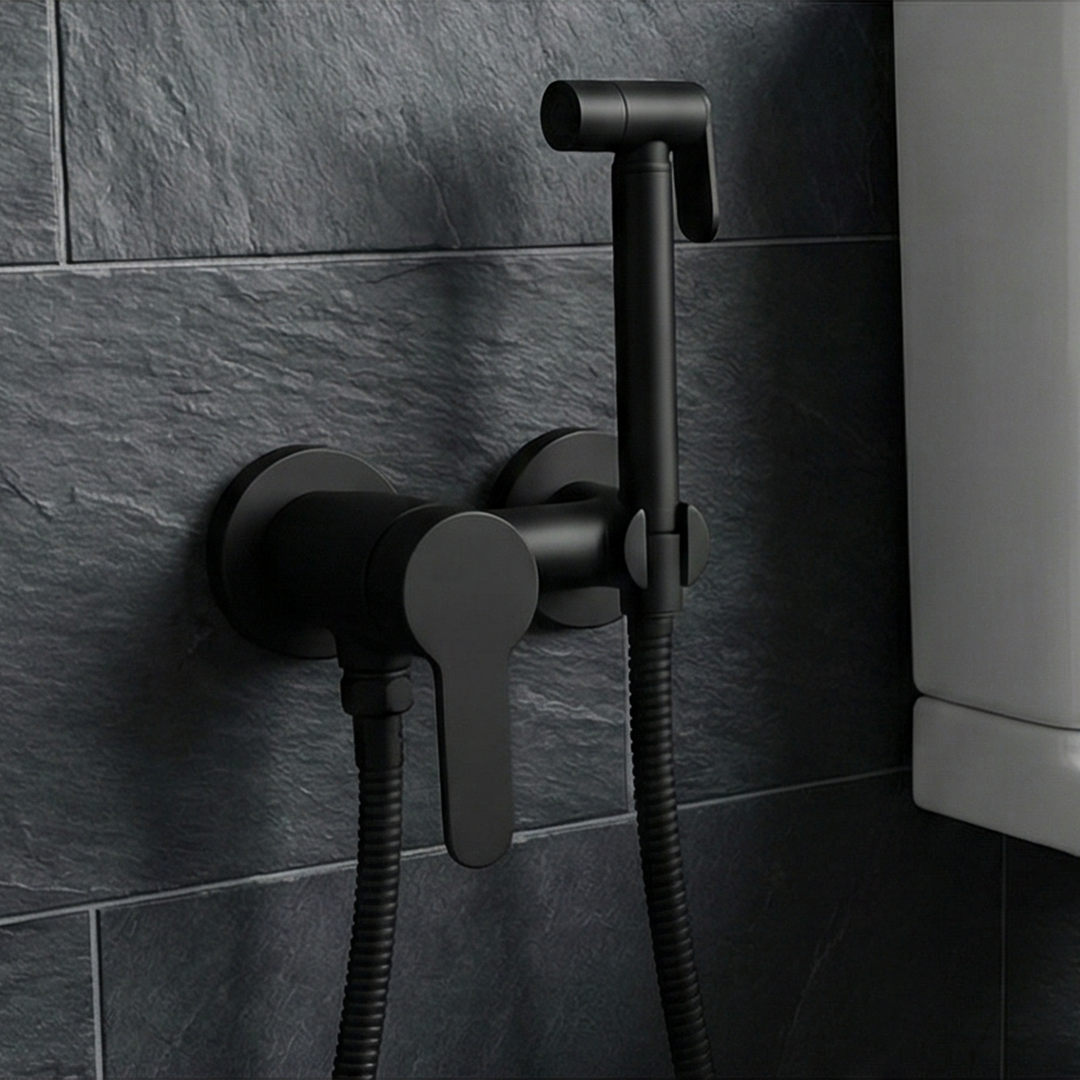

    · Matte Black: Modern, trendy, hides water spots well.

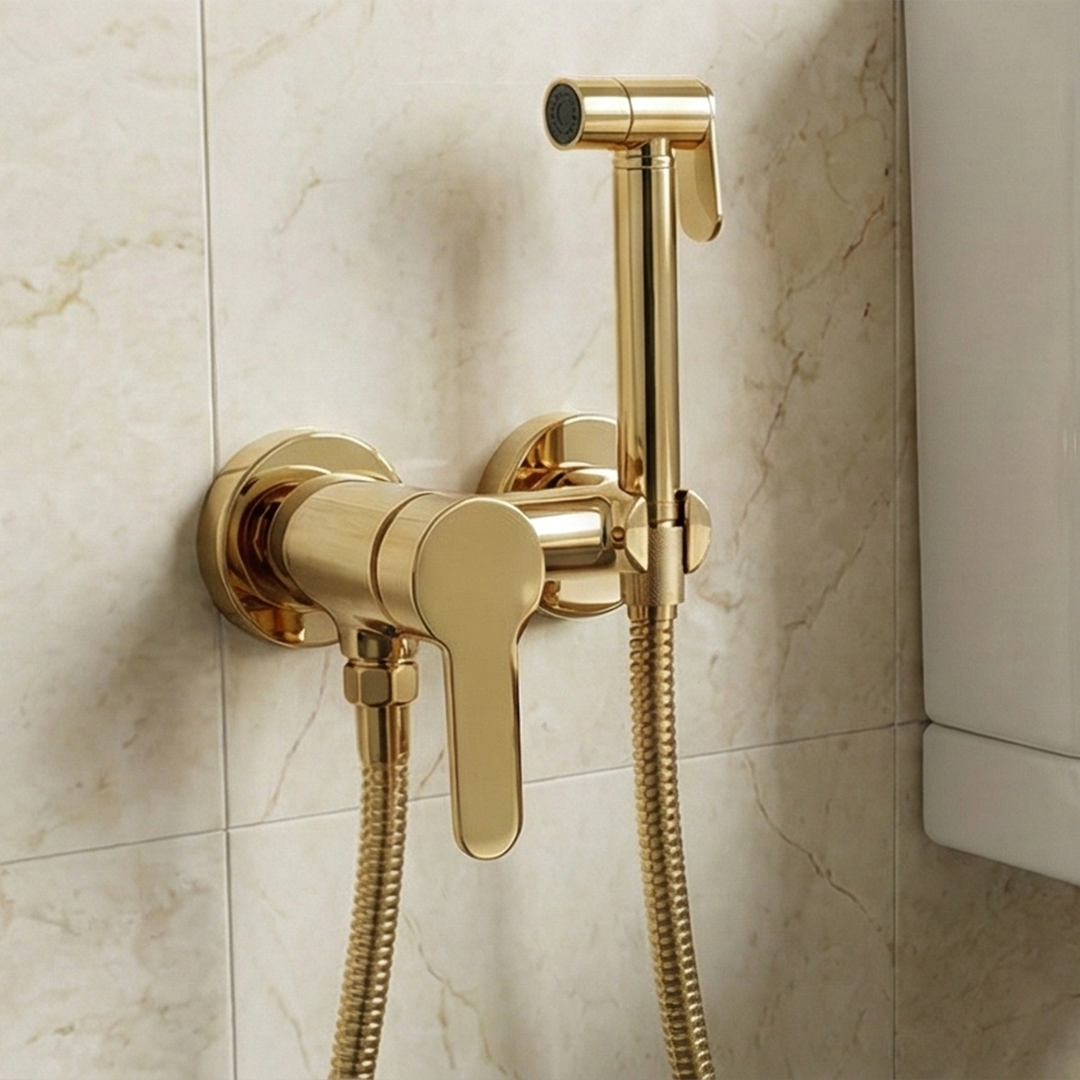

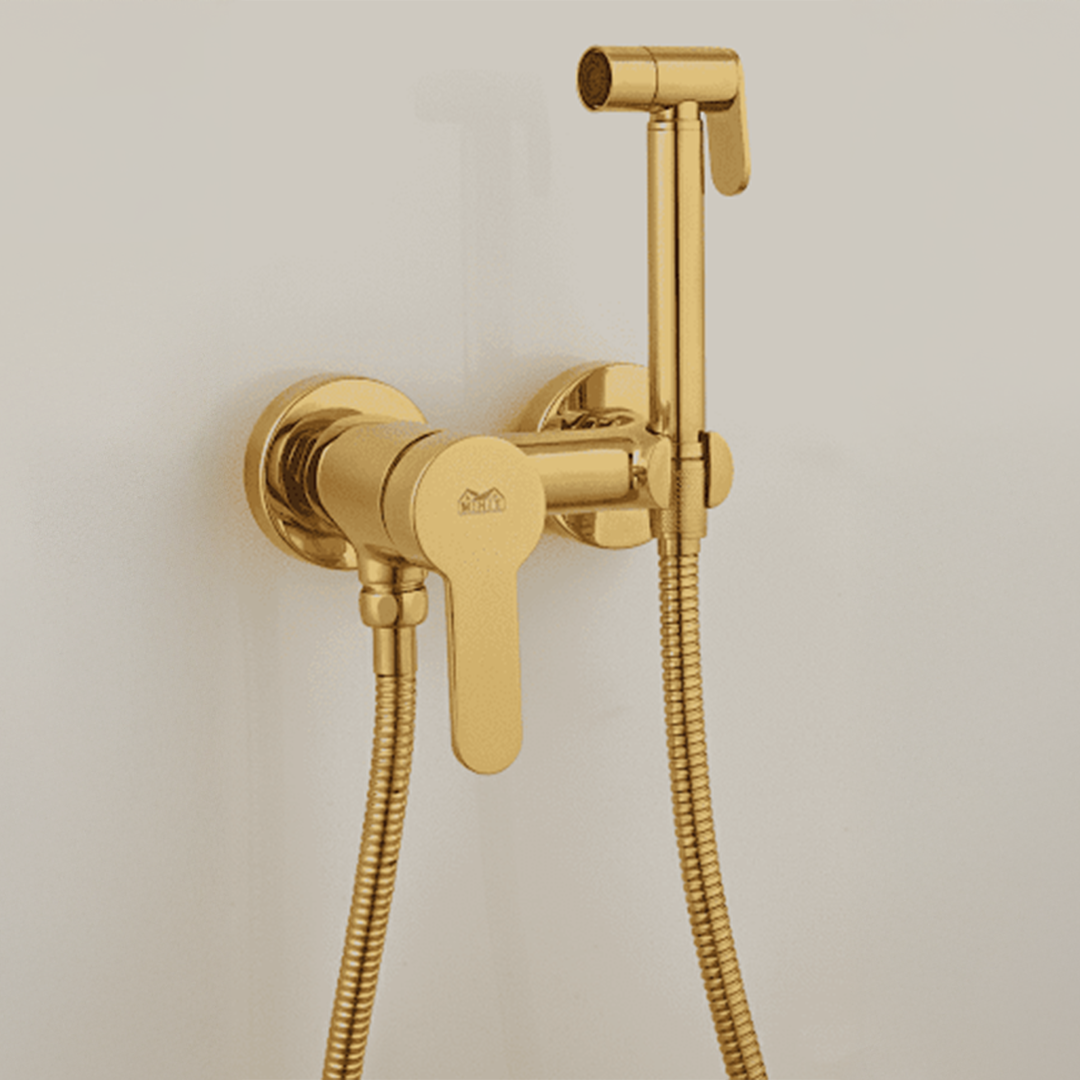

    · Gold: Luxury aesthetic, often used for a premium look.

· Valve Mechanism: Typically uses a ceramic disc cartridge inside for smooth operation, precise temperature control, and long-lasting, drip-free performance.

· Outlet: Usually a ¾" BSP male thread to connect the flexible hose of the bidet sprayer.

· Control: Can be a single lever (modern, one-hand control of temp and flow) or two knobs (one for hot, one for cold).

3. Installation & Connection Diagram

The setup is straightforward:

1. Hot & Cold Inlets on the mixer connect to the corresponding 4" or 6" spaced wall outlets.

2. Outlet of the mixer connects via a flexible hose to the bidet spray gun.

3. The spray gun is typically placed in a holder mounted on the wall beside the mixer or the commode.

4. Why Choose This Over a Simple Tap?

· Comfort: Mix hot and cold water for a comfortable wash.

· Hygiene: Effective personal cleansing.

· Versatility: The spray gun can also be used for cleaning the commode and bathroom floor.

· Modern Standard: Now considered an essential fixture in a well-equipped bathroom.

5. Price Range & Warranty

· Price: Typically ranges from Rs.13,500 to Rs.17,400, depending on:

  · Finish (Matte Black/Gold often cost more than Chrome).

  · Brand series (premium vs. basic).

  · Whether it's a kit mixer only.

· Warranty: As you mentioned, MHT generally offers a 1-year comprehensive warranty covering manufacturing defects in material and finish. The ceramic cartridge often has a longer warranty (e.g., 5 years).

6. Buying Checklist

Before purchasing, ensure you:

1. Measure the Center Distance: Use a ruler to confirm if your wall outlets are 4" or 6" apart.

2. Check Water Pressure: Most work well with standard pressure, but if you have very low pressure, confirm with the dealer.

3. Decide on Finish: Match it with your other bathroom fittings (taps, showers).

4. Kit vs. Separate: Buying a complete kit (mixer + hose + spray gun) ensures compatibility and is often more economical.

---

Final Recommendation

MHT's open toilet shower mixers are a solid, value-for-money choice for fulfilling this modern bathroom requirement. They offer the essential features (brass body, ceramic cartridge, multiple finishes) at a competitive price.

Actionable Steps for You:

1. Measure your wall points (4" or 6").

2. Choose the finish that matches your bathroom theme.

3. Purchase from an authorized dealer or Online from a company store for warranty validity.

4. Ensure installation by a professional plumber using proper sealing to prevent leaks.
